3.2 Adding graphics to your test questions
You can add graphics to non graphic based test questions.
  1. There are two steps required so you can add a graphic to a text box based test question.
    1. Add a graphic you'd like to use to the archive of your course
    1. Insert the HTML (shown below) into the body of your test question
  1. Here is a sample of simple HTML that will allow you to insert a graphic in your test question:


    <BR><IMG SRC="../graphics/your_graphic_file.jpg">

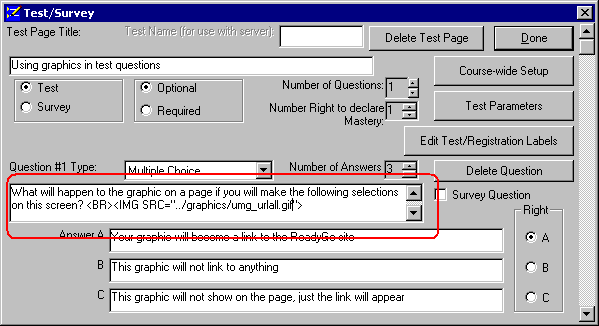

    Insert this HTML in the body of the question as shown on the image. Make sure to replace the name of the graphic file with the one you added to the archive
    2. Enter shown HTML to your test question to add a graphic

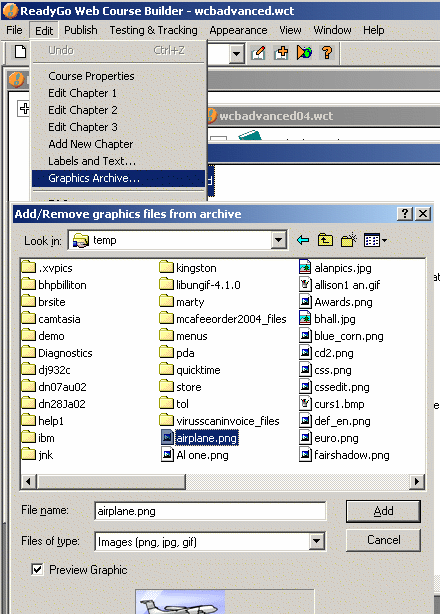

  1. To add a graphic to your course, select the menu Edit | Graphics Archive. Navigate to the graphic, and click the Add button.

    In Version 5.0 of ReadyGo, simply copy the graphic and paste it into the question, answer, or feedback area.
  1. The test, found below, provides a sample of a graphic used within a test question.
It's True! It's True! You can also use this procedure to add graphics to test answers and to Quiz pages.

Test/Survey Test/Survey
